With two new vertical turntables unveiled in the last few months, we asked our tech head Paul Rigby to take a look at the curious world of vertical turntables and whether or not you should actually bother playing records on them.

Well, look, we’re not talking the ultimate in sound quality here. When it comes down to it, if you wanted to build a turntable of audiophile quality and you were brainstorming ideas with a bunch of colleagues around a table and one chap suggested, “I’ve got it! Vertical turntables! We’ll tip the entire record on its side!” The boss might come back with something like, “Bob? How’s your garden doing these days? Why don’t you spend more time trimming your roses? Let’s me ring a taxi for you…”

The notion that gravity is pulling either on the arm (although there are ‘solutions’ to that one, as you’ll see below) but, more importantly, on the record itself as it swings up against this natural force, is a tremendous negative before you’ve even lifted a finger to design your deck to address the other 10,000 other issues that this configuration creates.

A turntable is a delicate and precise piece of engineering, it seems obvious that positioning the record in a vertical manner would be problematic and yet some manufacturers did exactly that. What possessed them? Well, you’ve got to put yourself in their shoes at that time. With the first flush of vinyl fever, there were many turntables out there and vertical mounting was just one way to stand out from the crowd. It’s intriguing that, with vinyl popularity now back on the table, we are once again seeing manufacturers address this design option.

Should you buy one? For sound quality reasons? Probably not. If sound quality is not your priority, then sure, why not? Some of the older, original models can be bought for not very much money. Many of the older models still work while the new models have the advantage of new construction materials giving some of them an attractively aesthetic quality. Finally, vertical turntables are just plain fun and a great talking point at parties.


Price: £20+

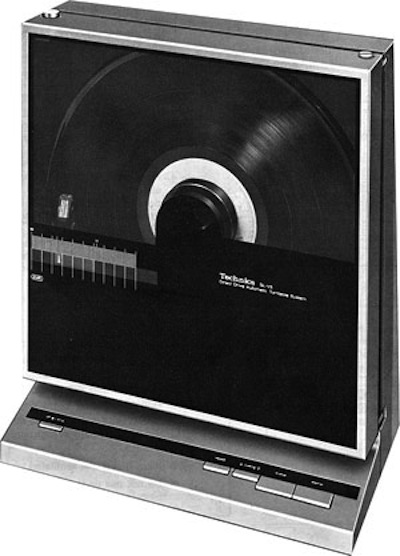

In a change for many designs of this type, the Technics linear tracking system was run via a direct drive, quartz-locked system and was relatively light, being half the weight of the typical Mitsubishi model, below. It ran both 33.33 and 45rpm discs.


Price: £20+

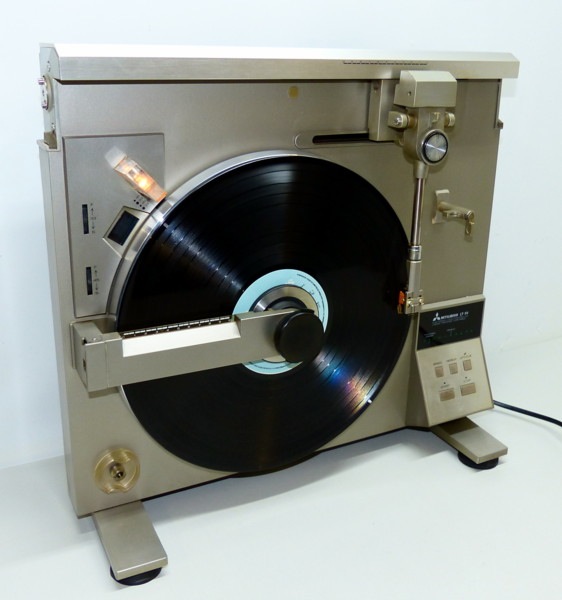

This two-speed, belt-drive, fully automatic turntable with parallel tracking tonearm was also available with a built in tuner/amplifier. You could also fine tune the speed options using rotary wheels. Released around 1983, the sound is, well, ‘ok’, let’s say that.


Price: £50

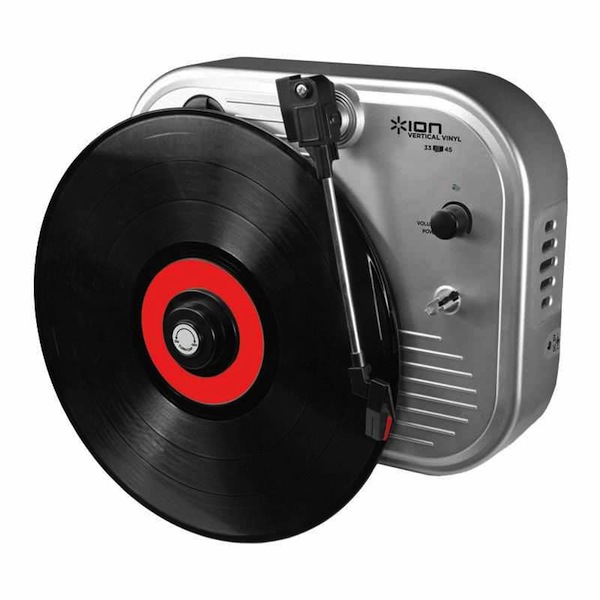

In general terms, the relatively new ION has been included here to show what to avoid. An excellent example of bandwagon jumping without any sense of design or planning, I can only imagine that the budget for this turntable project was somewhere around a fiver. Featuring a built-in speaker, the sound quality is very poor, speed stability is highly questionable, the arm skips grooves like Evel Knieval (ask your dad) and the volume is as loud as a monk with a mouth full of Spam.


Price: £80

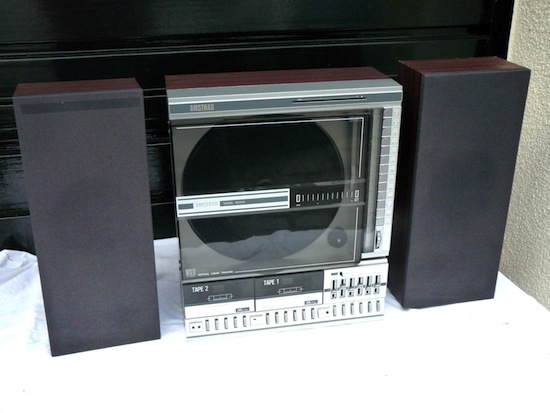

Normally, I wouldn’t touch Lord Sugar’s Amstrad with a sonic barge pole but this category of turntable is not sound quality-centric so the SM104 makes it into the list. It not only came with a pair of speakers but also a radio, twin cassette player, equaliser and remote control. Oh Alan, you dawg.


Price: £170

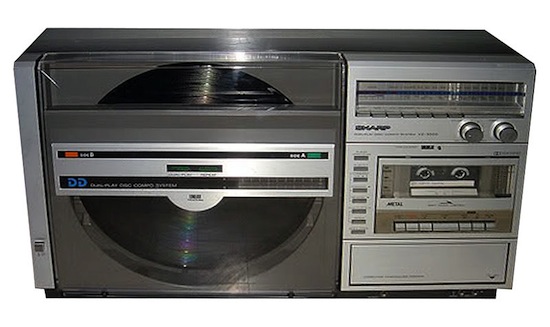

Released in 1980, the 3000 used ‘AutoDisc’ technology marketed by Sharp with the phrase “Play Both Sides” adorned on the chassis. Hence, you could play the A-side and B-side automatically without turning the record over. It arrived with a FM/AM radio tuner, cassette recorder and speakers.

Image: HiFiEngine


Price: £222 (approx)

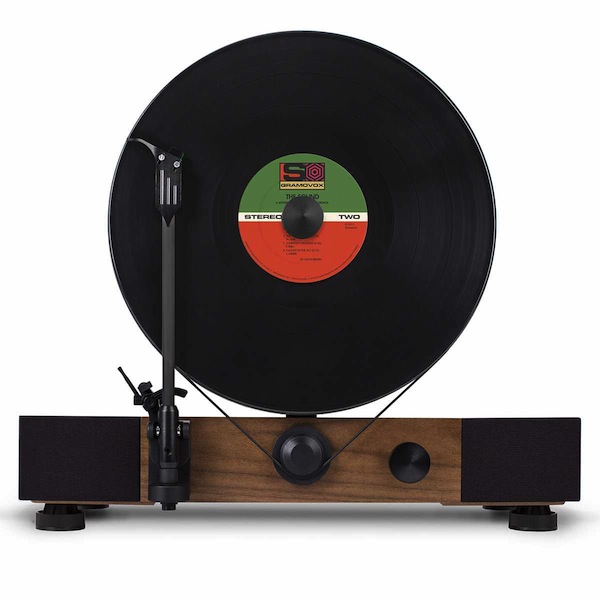

This new design, includes full-range stereo speakers (with external options connectable via a RCA line out) powered by an internal 15W amplifier (which, it has to be said, is a truly terrible idea), with a volume knob situated on the maple or walnut-veneered base. The belt-driven system runs at 33.33 or 45rpm. A record clamp fixes the record to the machine while the deck features an good quality Audio Technica AT95E cartridge and an acrylic platter. You also get a built-in headphone socket.

Screen Shot 2015-08-06 at 21.08.11

Price: £250+

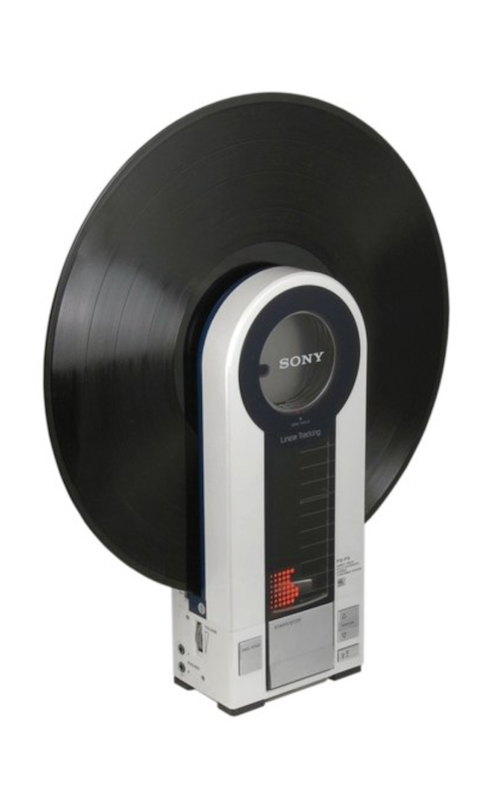

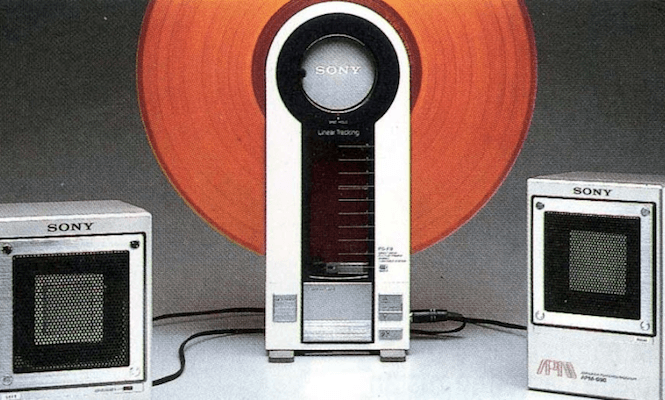

First sold in 1983, this compact unit was a portable affair and, thus, powered by batteries or an external power supply. It was possible to play 7″ or 12″ records at 45 or 33.3 RPM with a linear tracking direct drive. It also came with dual headphone sockets and a record clamping system. Half decent sound quality.


Price: £TBA

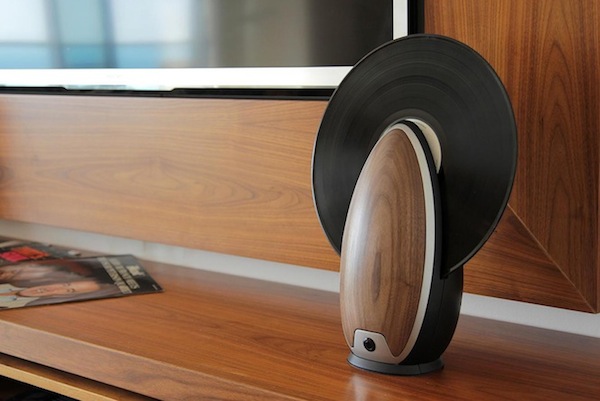

Another new product. Using a linear tracking system, this compact unit uses LED touch buttons and a remote control. With the Standing Record Player, you are also able to play warped records too due, reportedly, to its spherical bearings. Supporting 7″, 10″ and 12″ vinyl records, the unit comes with a built-in carbon fibre brush that captures dust to keep the stylus clean. It has an outer shell made of walnut wood plus two featured USB ports to allow PC, smartphone or a flash drive to capture music while it is playing. We await more information regarding its final release along with a price.

Comments (6)

  1. Zach West 2 years ago

    Just a head’s up from a long-time vinyl aficionado: vertical turntables weren’t just a marketing ploy “to stand out from the crowd.” Vinyl is analog…it still is (and was then, back in the 1980s) susceptible to wear from repeated playing. The idea was that rather than have a tone arm/cartridge combo that weighed down into the groove, gradually wearing out the record (no matter how high quality a needle or how well-balanced the arm) a vertical turntable should have offered less wear because gravity wasn’t pulling the needle down. Unfortunately, records do warp, even slightly, and what was there to keep the needle in contact with the ever changing surface as the disk rotated? If you increased the pressure of the vertical tonearm (or “floating” cartridge) onto the LP, then it defeated the purpose of having a vertical turntable to begin with! 🙁 How about a vertical LASER turntable…anyone?

    • J-Dub 2 years ago




    • Clark_Nova 2 years ago

      Gravity DOES hold the stylus down on the Mitsubishis. The counterweight is forward (toward the operator) of the pivot to compensate for the 90 degree orientation.

  2. Jeff Missinne 2 years ago

    This little goodie was called a Victorgram, made by the (Alexander F.) Victor Animatograph Company of Davenport, Iowa. It coupled a 16mm projector (400 feet/10 minutes reel capacity) with a turntable for 16-inch, 33 rpm Vitaphone transcriptions. In other words, talkie movies with “double system” sound-on-disc.

  3. Clark_Nova 2 years ago

    The Mitsubishi LT-5V (it’s not LT-SV, an error like that tells me you’ve never had one in front of you or actually heard one) is an excellent TT, only slightly inferior to their much-desired LT-20/22 and LT-30. The point of a vertical turntable is complete immunity to footstep vibration, for an obvious reason. Also, at a party, no jerk can set his drink down on the platter.

    Good luck finding one for 20 Pounds. They go for around $300-$400 dollars when you can find them.

  4. Eric Wayne Norlander 1 year ago

    Why is the Gramovox Floating Turntable’s internal 15W amplifier a “truly terrible” idea? I was curious about this turntable, but your review gave me pause. I, however, don’t know enough about electronics to know why this is not desirable… Thanks.
